Pump/temperature regulator

For open floor heating manifolds

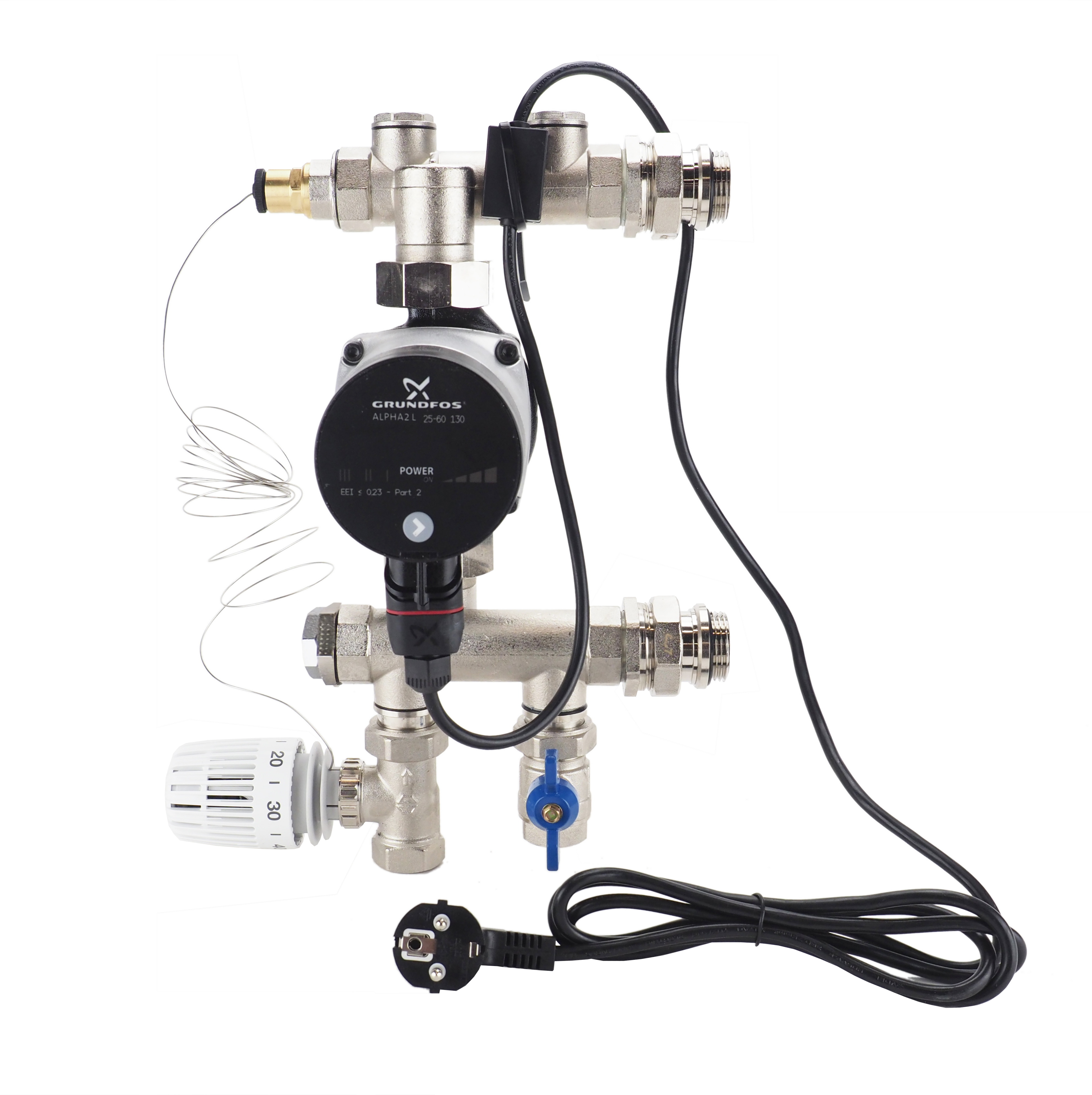

The temperature regulator makes MAGNUM Premium Stainless Steel Open LT or MAGNUM Premium Plastic Open LT suitable for high temperature systems. The controller mixes the warm supply water from the boiler back in order to obtain the correct temperature for the underfloor heating system.

The controller is equipped with an energy-efficient A-Label pump as standard.

Art.nr. Description
W90002A-Label Pump

Suitable for

Basic SteelX
Front SteelX
Premium Plastic ProX
Premium Stainless Steel Open LTV
Premium Plastic Open LTV

Specifications

Valve on inletV
Thermostat on inletV
PumpV
Flow meterX
ThermometerX
Pressure gaugeX
Air ventV
Valve on returnV
RTL valve on returnX
In control valve mixing quantityV
Stop valve between supply and returnX
Inspection CE

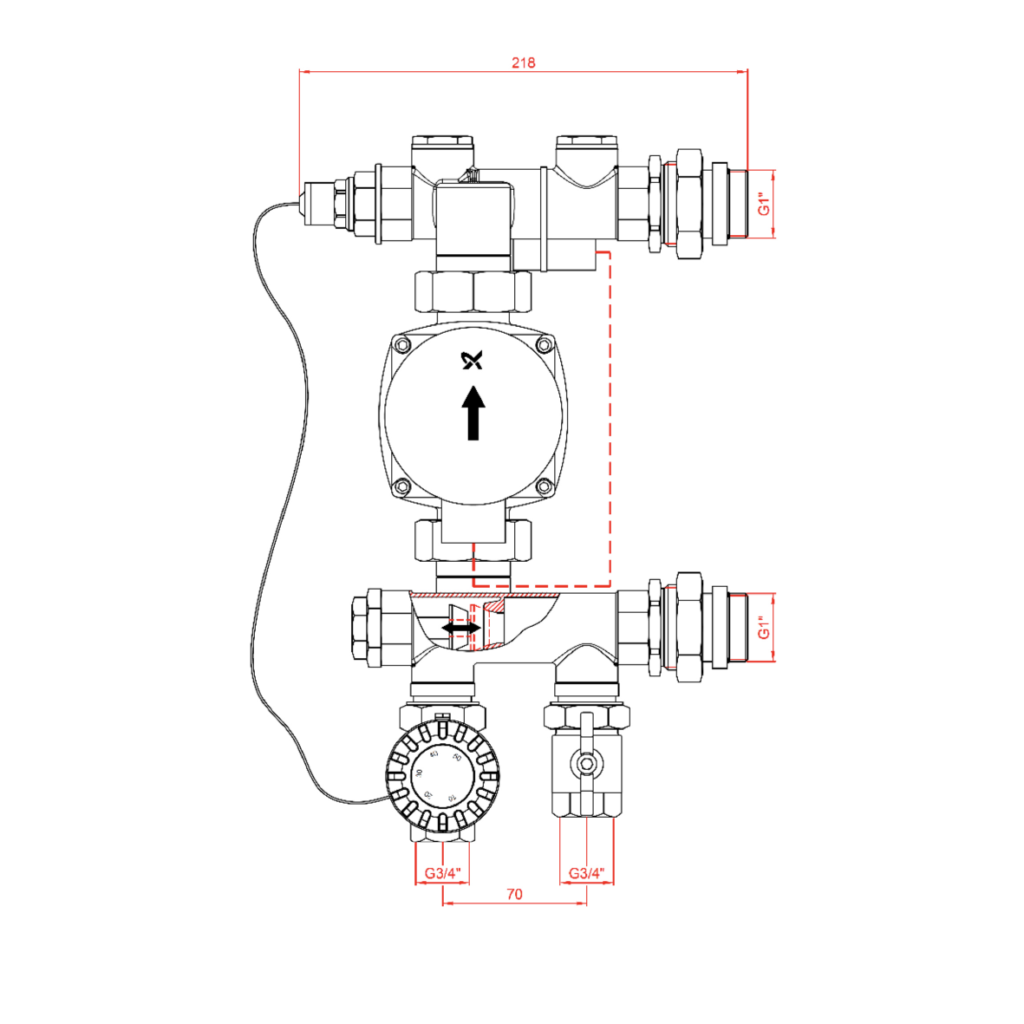

Technical details

  • Thermostatically prepared valve 3/4”
  • Thermostat knob with cap valve in immersion tube
  • A-Label pump
  • Ball valve 3/4” 2-part blue
  • Valve insert LTV manifold

Package contents

  • Pump/temperature controller
  • Warranty certificate
  • Installation instructions

Warranty
The A-Label pump/temperature regulator has a 10 year guarantee on the body, 2 years on the fittings.
