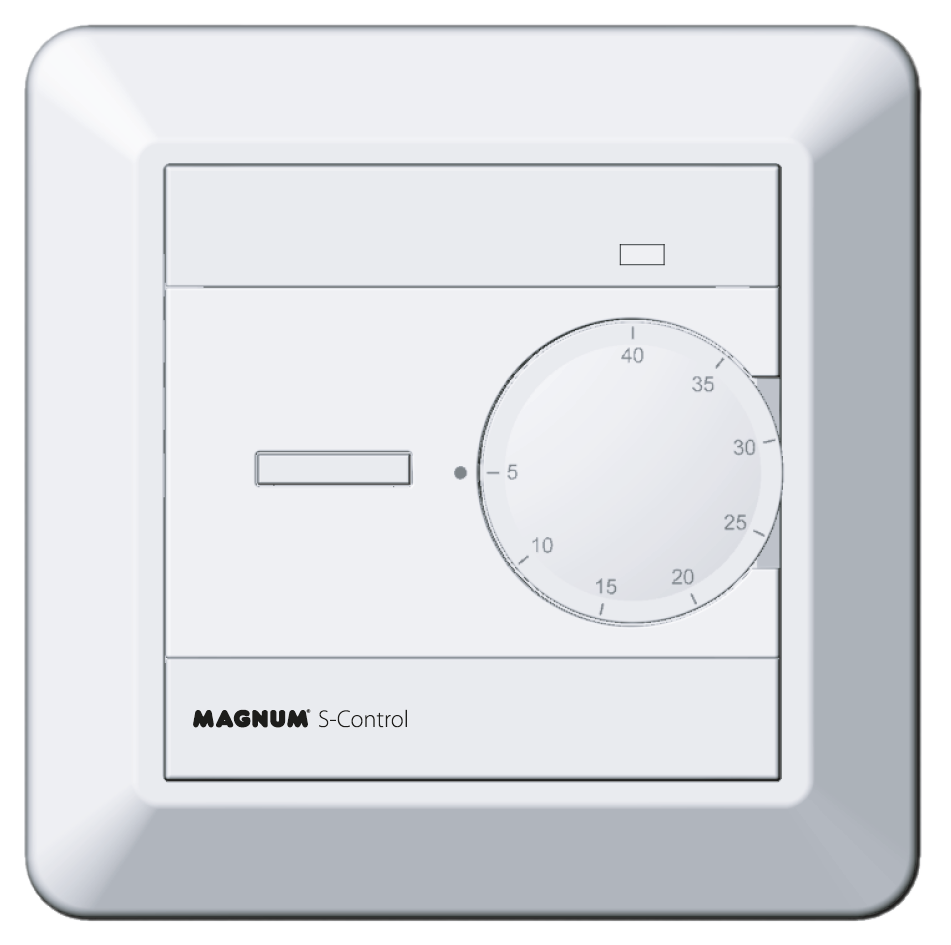

MAGNUM Standard Control

Thermostat

In some situations, a digital control is less necessary, and a simple on/off control is preferred. Especially in industrial applications or if continuous heating is required. For this purpose MAGNUM has developed the Standard Control: a simple on/off thermostat with temperature control that excels in simplicity and ease of use.

Art.nr. DescriptionColor code
827000MAGNUM Standard Control On/Off ThermostatPolar white – RAL 9010

Specifications

TypeOn/off thermostat
Suitable forElectrical systems
ControlsPhysical buttons
SensorsRoom and floor sensor (12K)
Voltage230V – 50/60Hz
Maximum load16A / 230V
Temperature range+5 / +40°C
HousingIP21

Warranty
2 year guarantee on the electrical operation and floor sensor.

Technical details

  • Voltage 230 Volt – 50/60 Hz
  • Max. load 16A / 230 V
  • Temperature range +5 / +40°C
  • Housing IP21
  • Color Polar white (RAL 9010)
  • Certification CE
  • On/off thermostat with temperature control
  • Includes floor sensor (12K)
  • Built-in room sensor and floor limit sensor
  • Multi-frame adapter system for: Gira, Jung, Elko, Merten, Busch Jager etc.

Installation method
Suitable for electric heating systems.

Package content

  • Thermostat
  • Installation instructions
  • Floor sensor (12K)
  • Two frames
