MAGNUM Castellated Plates
Positioning systems and accessories
Castellated plates

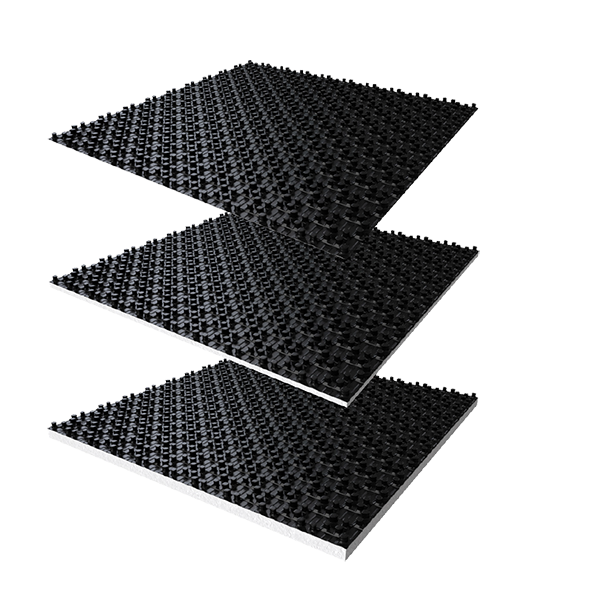

Castellated plates are specially designed to simplify the preparation of the floor for the installation of heating tubes, which reduces the installation time. The castellated plates also make it possible to fix underfloor heating tubes in a quick and easy way. Available as 17 mm uninsulated and in 28 or 47 mm insulated.
17 mm / 28 mm / 47 mm
| Art.nr. | Description | m² | |
| W90116 | MAGNUM Castellated plates Uninsulated | 10 m² | 10 pieces – 17 mm |
| W90108 | MAGNUM Castellated plates Uninsulated | 30 m² | 30 pieces – 17 mm |
| Art.nr. | Description | m² | |
| W90117 | MAGNUM Castellated plates 28 mm | 10 m² | 11 mm EPS – 10 pieces |
| W90109 | MAGNUM Castellated plates 28 mm | 20 m² | 11 mm EPS – 20 pieces |
| W90110 | MAGNUM Castellated plates 47 mm | 10 m² | 30 mm EPS – 10 pieces |
Specifications
| System type | Water based |
| System height | 17, 28 or 47 mm |
| System width | 1 x 1 m |
| Min. setting height | 5 cm above the tube |
| Installation | Floating / Pasting |
| In wet areas | V |
| Tiles | V |
| Wood | V |
| (PVC) Laminate | V |
| Carpet | V |
| Certification | DIN 4108-10, building material class B2 according to DIN 4102-B2 |
| Warranty | 2 years |
Technical details
Knob element with EPS thermal insulation plate according to DIN EN 13163, PS foil with tread seal and EPS tube knob on the back for heating tubes 14-16 mm. Two-sided foil overlay for screed-tight connection. Application for interior insulation on ceilings or floor plates according to DIN 4108-10, building material class B2 according to DIN 4102-B2.
- Fire behaviour according to EN 13501 = Class E
- Building material class in accordance with DIN 4102 = B2
- Fire behaviour according to EN 13501 = Class E
- Building material class in accordance with DIN 4102 = B2
- Application according to EN 13163 for interior insulation on ceilings or floorboards according to DIN 4108-10
- EPS (CFK-, HCFK-, HFK- & HBCD-free)
- Flame retardant polymer-FR
28 mm insulated
- Thermal resistance 0,314 m²K/W
- Max. traffic load 150 kPa
47 mm insulated
- Thermal resistance 0,75 m²K/W
- Max. traffic load 5 kPa ( kN/m²)
- Impact sound improvement 28 dB
- Nominal value according to DIN 4108-4 0,040 W/mK
Warranty
2 years
